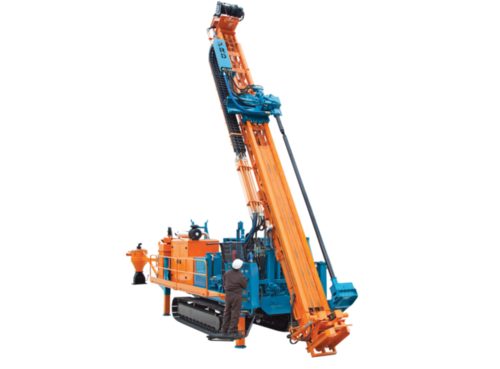

Mini Core Drilling Rigs

Mini Core Drilling Rigs

Product Details:

  • Condition New
  • Product Type Drilling Rigs
  • Material MS
  • Computerized No
  • Automatic Grade Automatic
  • CNC Or Not Normal
  • Color Orange And Blue
  • Click to View more
X

Mini Core Drilling Rigs Price And Quantity

  • 1 Unit

Mini Core Drilling Rigs Product Specifications

  • Drilling Rigs
  • Orange And Blue
  • No
  • New
  • Automatic
  • MS
  • Normal

Mini Core Drilling Rigs Trade Information

  • 1000 Unit Per Month
  • 7 Days

Product Description

Silver Core Drilling - TECHNICAL SPECIFICATIONS
CAPACITY BQ - 350mtr
NQ - 300mtr
HQ - 200mtr
PRIME MOVER Power for the Hydraulic is taken from the Suitable Deck Engine
MAST & SPEED SYSTEM Two speed Rotary Head powered by Hydraulic Motor gear type fixed displacement
High speed low Torque - 1000 rpm @ 300 Nm
Low Speed High Torque - 75 rpm @ 1000 Nm
LEVELLING JACKS 4 Nos lug mounted jacks provided for leveling with pilot operated check valve
WATER PUMP A separate engine driven triplex single acting water pump having flow capacity of 250 litres per minute and maximum pressure of 25 Kg/Cm2 is included
FOOT CLAMP Hydraulic operated indigenous foot clamp
BREAK OUT WRENCH The hydraulic operated rigid break out wrench provided for easy breaking of rod joints and foot clamp for core drilling rods
MAIN WINCH Single line capacity - Bare drum 3000 Kgs
Bare Drum Speed - 45 Mtrs / Minute
Cable Size - 16 mm of 15 Mtrs length
WIRE LINE WINCH Capacity - 500 Mtrs of 4.76 mm rope
Line pull - Bare Drum 1200 Kgs
Line Speed - Bare Drum 90 Mtr / Minute
